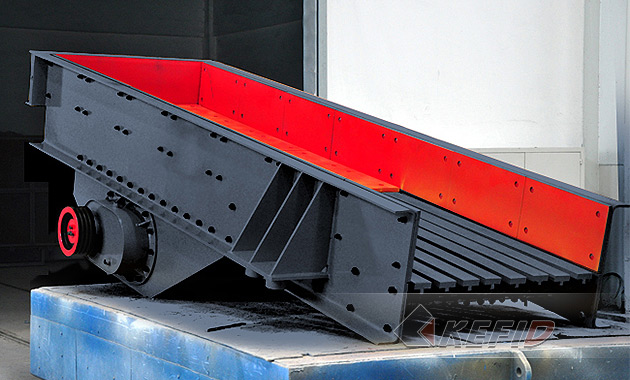

TSW series vibrating feeder
BY
kefidchina |
June 11th, 2016
TSW series vibrating feeder summarizing the design, production, sales and service experience in the mining industry for many years, TSW series vibrating feeder is our company’s new efficient feeder which combines with the development of modern industrial technology, extensively absorbs foreign advanced technology and independent research and development and design.
PERFORMANCE
- 1. Big feeding ability, high efficiency
- 2. Adjustment control is convenient and accurate
- 3. High reliability with enhanced supporting device design
- 4. stable operation, easy maintenance
TSW series vibrating feeder technical specification
| Model | Max. feeding size(mm) |
Capacity (t/h) | Rotation speed (rpm) |
Groove size (mm) | Weight(kg) | Dimension (mm) |
| TSW0936 | 500 | 130-280 | 750-900 | 960×3600 | 3.95 | 3680×2136×1953 |
| TSW1139 | 600 | 150-350 | 750-900 | 1100×3900 | 4.32 | 3980×2276×1953 |
| TSW1345 | 700 | 250-450 | 750-900 | 1300×4500 | 4.97 | 4580×2570×1980 |
| TSW1548 | 850 | 350-650 | 750-900 | 1500×4800 | 6.57 | 4880×2832×2044 |
| TSW1852 | 1000 | 450-850 | 740-860 | 1800×5200 | 7.43 | 5280×3145×2059 |
| TSW2156 | 1150 | 650-1000 | 700-850 | 2100×5600 | 9.86 | 5680X3520X2359 |
