500 TPH Ore Crushing Flow Design

500 ton per hour mineral ore processing plants are the large mineral processing plant. But it is also common seen in some government construction project, coal mine mining and crushing, etc. By now, kefid has 500 ton per hour coal ore mining plant used to processing coal, 500 ton aggregate crushing plant used to processing stone / sand for Chinese municipal construction. We have more than 20 years experience in 500 ton ore processing equipment choose and plant design. Need more help, please contact with our online chat service for free.

Crushing Plant Introduce

  • Raw Material: bitumite, lignitous coal, coal ore, coal briquette, aggregate stone
  • Max. Feeding Size: 1050 mm
  • Final Product Size: 0-10 mm, 10-20mm, 20-50mm
  • Crushing Capacity: 450 ton per hour, 500 ton per hour, 550 ton per hour ( processing capacity is according to the final product size and type you need)

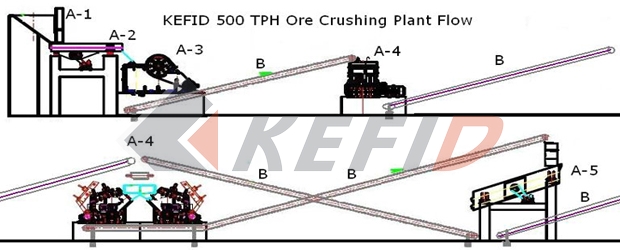

500 Ton Per Hour Ore Crushing Plant Flow

Equipment Parameter List

Order

Name

Model

Sets

A-1

Hopper

LC4000X5000

1

A-2

Vibrating Feeder

ZSW1300X4900

1

A-3

Jaw Crusher

PE1200X1500

1

A-4

Impact Crusher

PF1315

2

A-5

Vibrating Screen

3YZS2160

2

B

Belt Conveyor

B650, B800,B1000

6
