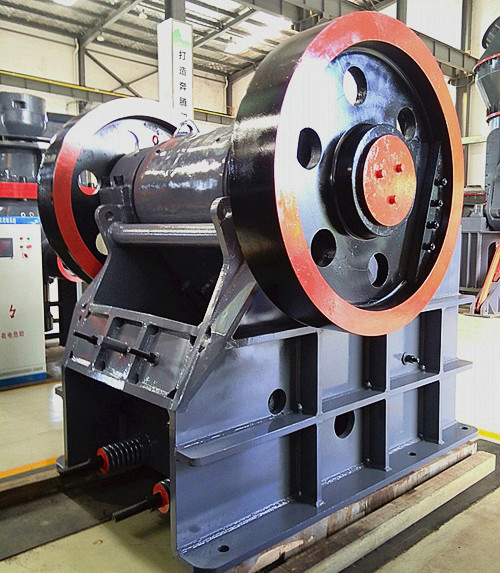

HJ series high-energy Jaw Crusher
BY
kefidchina |
January 3rd, 2014
HJ series of high-energy jaw crusher is one of the modern High performance crusher made by Kefid company. It has absorbed foreign advanced technology, based on the actual needs of the customer site, based on the high input, high output design concept development, set low-power, high capacity. Practice has proved that energy HJ series jaw crusher with its excellent performance, reliable quality and high price to win the trust of customers around the world, is a traditional jaw crusher ideal upgrade alternative.
OUTPUT SIZE: 40mm to 350mm
PRODUCTION CAPACITY: Up to 650TPH
PERFORMANCE
- Better performance than old ones: according to an in-depth study, KEFID optimized motion trail of the movable jaw and the cavity of the machine.
- The weight of counterweight and the structure of the Jaw crusher are adjusted, the vibration of whole machine is greatly improved and the performance is also well improved.
- Utilize new bolt system, operators can replace the toggle easily.
HJ Jaw Crusher Model |
HJ98 | HJ110 | HJ125 |
Feed Opening Size(mm) | 650×980 | 800×1100 | 950×1250 |
Max feeding size(mm) | 560 | 660 | 800 |
Discharge range opening(mm) | 100-200 | 100-200 | 125-225 |
processing capacity(t/h) | 170-410 | 215-510 | 306-650 |
Eccentric shaft speed(r/min) | 270 | 260 | 230 |
motor power(kW) | 90/110 | 110/132 | 132/160 |
Overall dimensions(mm) | 2470×2000×2180 | 2875×2472×2530 | 3320×2600×3120 |
