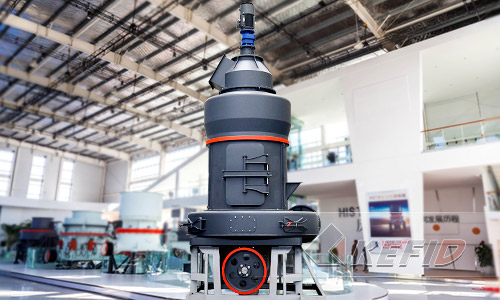

MB5X pendulum suspension mill. The equipment is the five generation pendulum suspension mill developed based on more than 30 years of product experience with a number of patented technology.

• Max. Feed size(mm): <55 mm
• Final size(mm): 0.045 – 1.5 mm
• Capacity(t/h): 2.7 – 83 ton/hour
• Suitable for all kind of stones, such as Feldspar, calcite, limestone, talc, barite, rare earth, marble, bauxite, phosphate ore, etc.

Compared with the traditional pendulum mill, suspension mill, MB5X pendulum suspension mill’s new structural design and patented technology applications make the equipment operation and maintenance costs lower, environmental performance and material quality better. It can grind non-flammable and explosive brittle mineral materials of Mohs hardness below 7 and water content below 6%.

Iran gypsum superfine grinding mill, Iran gypsum micro powder making line, Iran gypsum 600 mesh powder grinding line. etc. In 2015 and 2016, We have many iran customer they search for the grinding mill to processing gypsum, the output powder are 600 mesh, 800 mesh, 1250 mesh, etc. By now, we have sold two sets grinding line to customer in Iran. Here is a list of grinding line, if need quotation, you can contact with us for help.

• MATERIAL :  Gypsum
• OUTPUT SIZE : 600-800 mesh
• CAPACITY : 3-8 ton/hour
• MODEL : LUM superfine vertical grinding mill, MW ultrafine roller mill

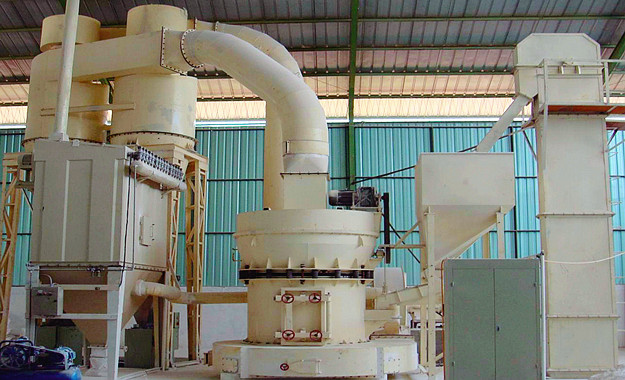

In a Uzbekistan model customer site, TGM100 trapezium mill is used to process the lime powder. The fineness is 100 mesh and the single output is 3-5 t/h. It fully meet the customer demand for production. The customer visited our factory and are very satisfied with our production, cutting, welding technology. In the installation process, our perfect customer service has won more trust.

In another TGM100 mill production line of Uzbekistan-site,the material that customer processed is tufa. The input size is 20-25mm and the output size is 0.613-0.033mm.The capacity is 3-5 t/h which meet and exceed customer expectations. This year, the customer intends to buy two TGM100 trapezium mills.

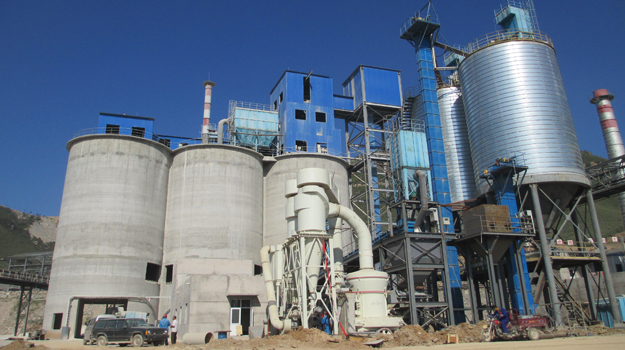

The main raw materials used in the cement manufacturing process are limestone, clay, sand, shale and iron ore. Limestone is usually mined on site while the other minor materials may be mined either on site or in nearby quarries. Another source of raw materials is industrial by-products. The use of by-product materials to replace natural raw materials is a key element in achieving sustainable development.

Cement Clinker’s Wet Process:
In the wet process, each raw material is proportioned to meet a desired chemical composition and fed to a rotating ball mill with water. The raw materials are ground to a size where the majority of the materials are less than 75 microns. Materials exiting the mill are called “slurry” and have flowability characteristics. This slurry is pumped to blending tanks and homogenized to insure the chemical composition of the slurry is correct. Following the homogenization process, the slurry is stored in tanks until required.

Cement Clinker’s Dry Process:
In the dry process, each raw material is proportioned to meet a desired chemical composition and fed to either a rotating ball mill or vertical roller mill. The raw materials are dried with waste process gases and ground to a size where the majority of the materials are less than 75 microns. The dry materials exiting either type of mill are called “kiln feed”. The kiln feed is pneumatically blended to insure the chemical composition of the kiln feed is well homogenized and then stored in silos until required.

Limestone MTW138 Grinding Plant in Philippines

• Raw Material: limestone
• Input Size: 200 mm
• Output size: 325 mesh; D90
• Capacity: 5 t/h
• Application: Cement additives
• Special Configuration: Cage type separator adopted. Compared with the blade type separator, cage type separator can separate more fine powder.

Brief Introduction:

This Philippines customer purchased the first set of MTW138 grinding mill from our company in the year of 2013. This customer use the grinding mill to process limestone, and the final product is as additives for cement production line. The equipment operates well, so the customer is very satisfied with our product and our service. We have developed a good partnership with him. In the year of 2016, he wanted to expand his production. He found us directly and purchased another set MTW138 grinding mill from our company.

KV9532-2 (Y4S2160X9532) fine crushing and shaping mobile station are ready to deliver, it will used for crushing basalt in our Papua New Guinea customer site. The output is 200 tons per hour, feeding 40mm or less, and the output size is 0-25mm.  In addition, the production ratio have exceed customer expectations.

The crushing technology combined with professional precision mechanical structure to ensure a perfect finished products granularity. Secondly, mobile crushing and screening station also has 5X shaping impact crusher series mobile station, set professional crushing technology and the perfect example of machinery manufacturing, can break finished accurate classification.

• Material type: Basalt
• Inupt size: <40mm
• Output size: 0-25 mm
• Capacity: 200 ton/hour
• Country: Papua New Guinea
• Crusher Name: KV9532-2 (Y4S2160X9532)

Get video,   Get Picture,    Get Price,    Get Support,    Online Free Chat.

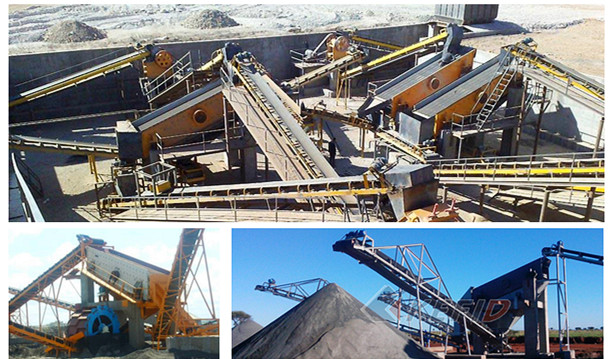

Mineral Ore Screening Equipment, Vibrating Screen, Trommel, Sieving Machine

Raw materials: All kinds of sand or stone

Capacity: 10-810 t/h

Max Feeding Size: 400mm

Output Size: 3-150mm

Application: mining, building materials, metallurgy, chemical industry

Get video,   Get Picture,    Get Price,    Get Support,    Online Free Chat.

• Material: Limestone
• Feeding size: < 40mm
• Output size: 0.08 mm
• Capacity: 5 t / h
• Configuration: hopper + vibrating feeder + MTW110 European tech. grinding mill

The client originally used our old super pressure trapezium mill and is satisfied with product quality and our service. With the upgrading of our products, the customer did not hesitate to choose our new European Tech. grinding mill to expand production. The mill uses advanced internal oil lubricating system, easy maintenance and repairing. The design of curved surface can be replaced shovel edge also extends the life of wearing parts. This will greatly save costs in replace wearing parts. Currently the mill is stable, green and beautiful, relished by the local mill customer groups.

Get video,   Get Picture,    Get Price,    Get Support,    Online Free Chat.

Wall putty is white cement & mineral based putty for use on cement concrete. Wall putty has a variety of applications and can be used on concrete, rendered walls, hollow blocks, pre-cast walls, concrete ceilings, calcium silicate bricks, aerated light-weight blocks etc.

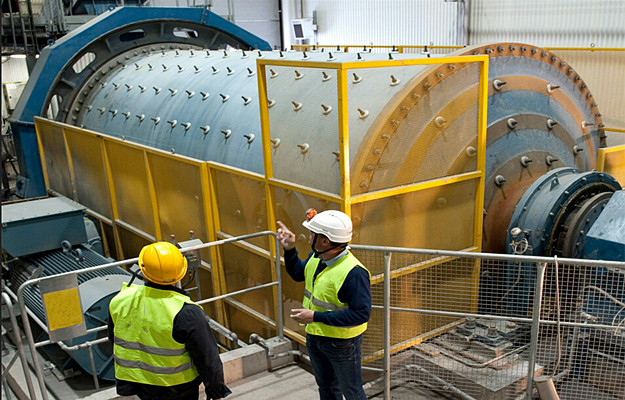

Ball mill is an efficient tool in wall putty manufacturing process in small plant. There are two ways of grinding: the dry way and the wet way. To use the ball mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
